Overview

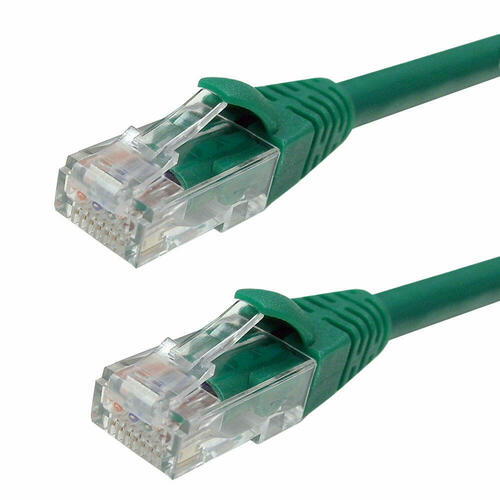

This CMP plenum rated Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45
male on the other. It is typically used for ethernet network connections such
as patch panels, switches and computers to routers.
|
![]()
|
100% Pure Copper
This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.
50 Micron Gold Plated Connectors
This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
Plenum Rated Cable
Ideal for use in cable runs that
are located within a plenum air space or partially travel through a plenum air
space.
![]() ![]() ![]() ![]()
|
Specifications
|
Physical Characteristics
|
| Connector Plating
|
Gold Plated 50 Micron
|
| Conductor Material
|
100% Bare Copper
|
| Cable Diameter
|
4.70 mm
|
| Wire Gauge
|
24AWG Solid
|
| Shielding
|
UTP (Unshielded)
|
| Pairs
|
4
|
| Fire Rating
|
CMP/FT6 [Plenum Rated]
|
| Color Code
|
568B
|
Strain
Relief
|
Molded Tab Style Strain Relief
|
| Jacket Temperature Rating
|
-10℃ to +75℃
|
| Jacket Type
|
PVC - Polyvinyl Chloride
|
|
Connectors
|
| Connector A
|
RJ45 Long Body Male
|
| Connector B
|
RJ45 Long Body Male
|
|
Performance
|
| Frequency
|
350 MHz
|
|
Environmental
|
| RoHS
|
Compliant
|
| Reach
|
Compliant
|
| Conflict Materials
|
Compliant
|
|
Package Information
|
| Package Quantity
|
1
|
Cable Weights
| 1ft
|
2ft
|
3ft
|
5ft
|
7ft
|
10ft
|
14ft
|
20ft
|
25ft
|
30ft
|
35ft
|
50ft
|
75ft
|
100ft
|
125ft
|
150ft
|
| 0.05 lbs
|
0.08 lbs
|
0.10 lbs
|
0.15 lbs
|
0.20 lbs
|
0.25 lbs
|
0.40 lbs
|
0.50 lbs
|
0.60 lbs
|
0.70 lbs
|
0.80 lbs
|
1.10 lbs
|
1.90 lbs
|
2.15 lbs
|
2.30 lbs
|
2.60 lbs
|
![]()
