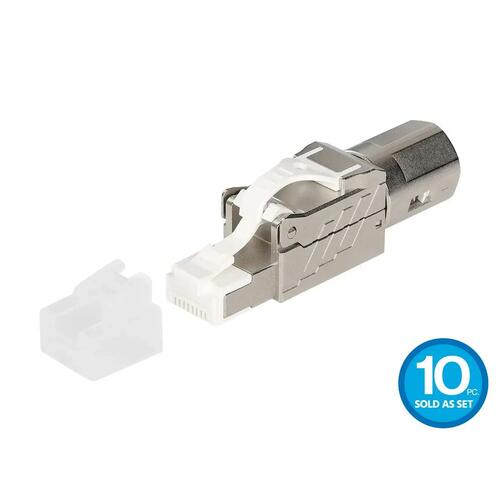

Entegrade Series Cat7 or Cat6A RJ-45 Field Connection Modular Plug, 10/Pack - Monoprice®

Shielded for 23/24AWG Installation Cable

  • Model#: Cab-24757
  • $129.99
    PLUS Exclusive How to get this PLUS Exclusive Price? LIMITED TIME
    : :
    Earn 2600 S-Points Rewards
    What are Bonus points and how do I earn them?

    Bonus points are offered as part of our Shopper+ S-points Club program and can be collected on the purchase of most items sold on our web sites, Earn 20 S-Points for every 1 dollar spent on our websites or make use of our promotions.

    Note: the total s-points offered on individual items may be affected by other offers or discounts in your cart.

    learn more about S-Points Club

    Free Shipping
    Limited Quantity:

    Due to the delivery issue, limiting the quantity of the products to the single order and you may add the remaining items in a following order.

    On Sale:

    Products offered for purchase at a reduced price normally for a limited period. (Coupons do not apply to on sale products.)

    On Sale Limited Quantity:

    Products offered for purchase at a reduced price normally for a limited period. (Coupons do not apply to on sale products.)

    OEM:

    Are products made by the Original Equipment Manufacturer under its own name and branding. OEM products take on the warranty of the manufacturer and not of the vendor. (Coupons do not apply to OEM products.)

    Best Value:

    Products already priced at our best everyday value. (Coupons do not apply to Best Value products.)

    Holiday:

    Holiday items may not be returned nor refunded after their respective holiday, this includes unopened items (holidays include Valentine’s Day, Saint-Patrick’s Day, Easter, Canada Day, Thanksgiving, Halloween, Christmas).

    Seasonal:

    Seasonal products at Shopper+ are special return and exchange Conditions Further details are available contact our Customer Service.

    Clearance:

    Final sale items or discontinued items at extremely discounted prices. All items tagged CLEARANCE may not be returned or exchanged as all purchases are final on clearance items. (Coupons do not apply to clearance products.)

    Local Delivery:

    Local delivery product(s) are shipped by Shopper+ Express and are only available for certain addresses. Please check if Local Delivery is available at your address before placing your order. Thank you.

    Free Shipping (Regular customer only):

    The product is eligible for free shipping within Canada shipped via standard delivery. Free shipping is not available when the shipping address is a remote location.

    Special Offer!
    • Free Shipping:

    • Get a free gift:
    • Buy more, get more free:
      More choices, more surprises!
    • S-Points:

    • Price Break Discount:

  • :

  • - +
    Item in Wish List
    Add To Wish List
  • Warranty: 1-year warranty
  • product highlights

    • UTP & FTP
    • Cat6a Class Ea RJ45 Field Assembly Plug
    • Load Bar for Faster and Easier Wire Pattern Termination
    • Supports Power over Ethernet (PoE, PoE plus, and UPoE)
    • Compatible with Cable Jacket Diameters from 6 to 9.5 mm
    • Adjustable Strain Relief (6mm to 9.5mm Cable outside diameter)
    • Easy Assembly – terminate in field in minutes without special tools

Loading...

Loading...

Cat7 or Cat6A RJ-45 Field Connection Modular Plug

Shielded for 23/24AWG Installation Cable

Features

  • Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
  • Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm
  • Transmission Characteristics: Cat6a per IS0/IEC 11801 Ed.2.2:2011-06
  • Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 Gbit
  • IEEE 802.3an
  • Operating temperature: -40 ~ +60°C
  • Relative humidity: 85% (+30°C), Air pressure: 70-106Kpa
  • Gold Plated Bronze Blade: bronze and gold plating (3-50 µinch}, mating durability not less than 750 cycles
  • Made from Kirsite \ PC or PCB(UL94VO)
  • Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor)
  • Insulated resistance: no less than 1,000 megohm in normal atmospheric pressure
  • 1,000 VDC (700 VAC)
  • Retention strength: 7.7kg between jack and plug

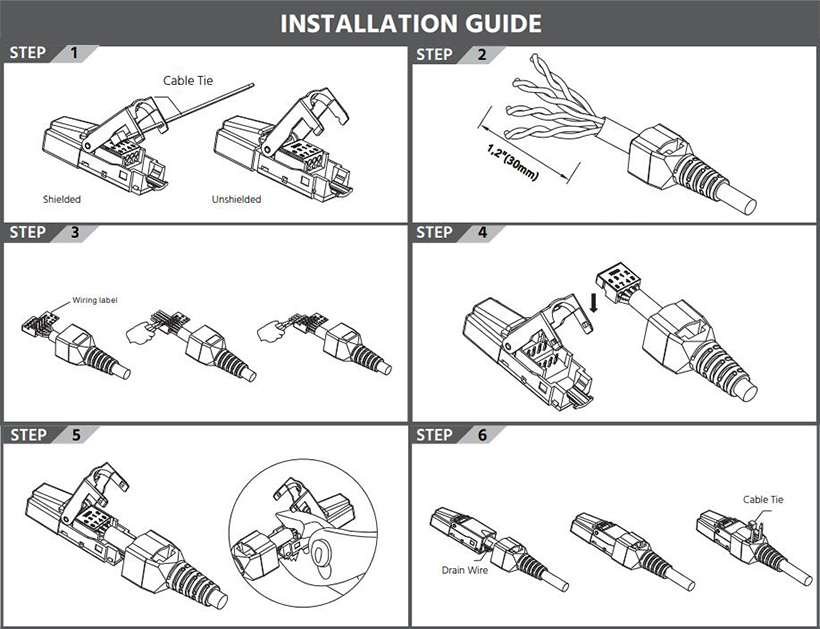

Installation Guide

  1. Remove the cable tie before installation.
  2. Insert the cable into the strain relief boot, then strip off 30mm of the cable jacket and fold back the braided and drain wires.
  3. Fan out all four twisted wire pairs, and allocate each conductor into the proper slot following the color coding on the wires and wiring cap, then trim the ends of the conductors.
  4. Place the wiring cap onto the plug.
  5. Use pliers to clamp the wiring cap closed until it completely snaps in to complete the connection.
  6. Close the plug cover and make sure the drain wire is in proper contact with the grounding clip. Pull back the strain relief boot to cover the plug and fasten the supplied cable tie to secure grounding contact.

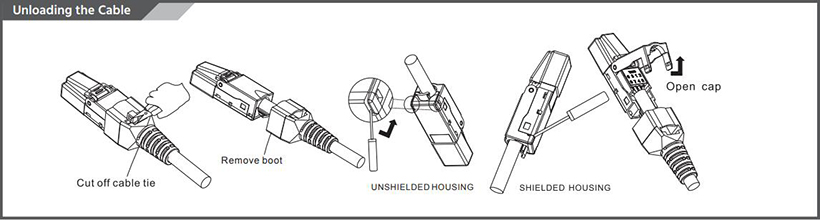

Unloading the Cable

Cut off the cable tie, and remove the boot. Using a flat screw driver, gently pry open the plug cover one end at a time.

Support Files

Specifications
Product Type RJ-45 modular plug
Cable Type UTP & FTP
Stranded Wire AWG 27/7 to 22/7
Solid Wire AWG 26/1 to 22/1
Transmission Characteristics Cat6a per IS0/IEC 11801 Ed.2.2:2011-06
Operating Temperature -40 ~ +60°C
Relative Humidity 85% (+30°C)
Air Pressure 70-106Kpa
Intermediate Resistance ≤ 20 ohm (not including bulk resistor)
Insulated Resistance ≥ 1000 ohm
Retention Strength 7.7kg between jack and plug
Quantity 10/pack
